EtherExpert-NE
Carrier-Grade 1-100G Network Impairment Emulator
Stress‑test tomorrow's networks today.
Replicate real‑world network conditions with nanosecond precision, seamless automation, and deep visibility—ensuring your applications, protocols, and devices perform flawlessly under any challenge.
Confidence in Every Connection
IP/ Ethernet Stress Testing
Ensure your enterprise, carrier, or cloud services deliver reliable performance worldwide—Packetronix empowers teams to de‑risk deployments, meet SLAs, and accelerate innovation with real‑world WAN validation.
Hardware-Based WAN Emulator Features
Purpose-built hardware and software for carrier-grade network impairment testing
Hardware Based Impairments Emulation
FPGA-based hardware for nanosecond-level precision in impairment control
1/10/25/100 Gbps at Line Rate
Accessible from anywhere in the world, simplifying setup and operation
Multi-user Web-based UI
Support for multiple line rates to meet diverse testing needs
IPv4 / IPv6 Simultaneous Support
Full dual-stack support for comprehensive protocol testing
REST APIs for Test Automation
Fine-grained delay control for precise network condition emulation
Up to 15 Secs Delay with 1µSec Increment
Seamless integration with CI/CD pipelines and regression testing
1/10/25/100 Gbps Network Impairment Emulator
➔ Modern networks must handle a wide spectrum of traffic — from latency‑sensitive voice and video to high‑throughput data center and cloud workloads.
➔ To guarantee reliability, performance, and resilience, validate equipment, protocols, and applications under realistic and often adverse conditions before deployment.
➔ The Packetronix Network Impairment Emulator is a high‑performance platform built to replicate real‑world network behaviors in a controlled lab environment.
➔ Designed for engineers, testers, and developers, it enables precise analysis and stress‑testing across enterprise, carrier, and cloud infrastructures.
➔ Supports multiple line rates (1G / 10G / 25G / 100G) and scales seamlessly to meet diverse testing needs.

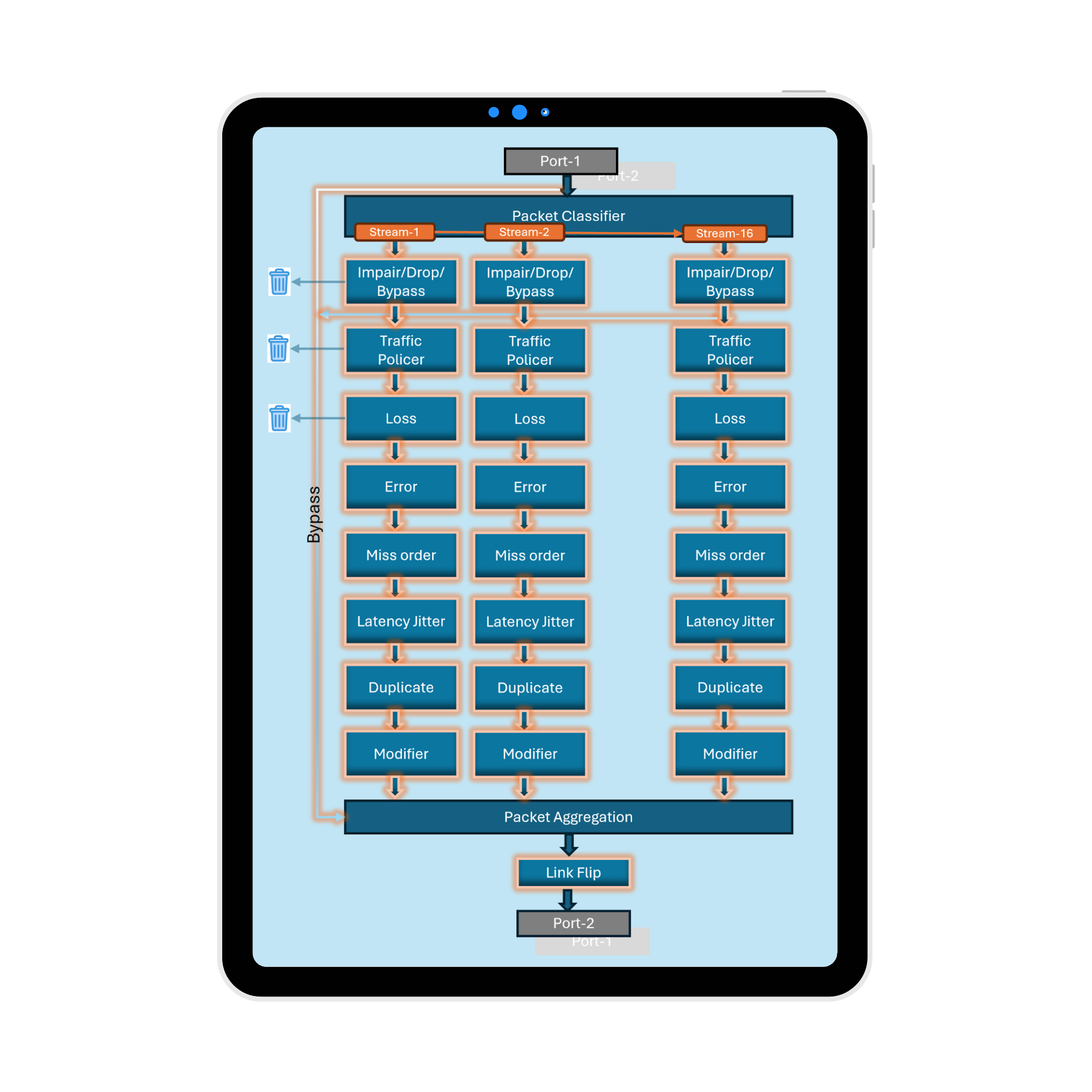

➔ Fine‑grained stream identification and filtering provide full control over which traffic is impaired, bypassed, or dropped.
➔ Each stream can operate independently in Impair, Bypass, or Drop mode, with up to 16 paths per port for flexible scenario modeling.

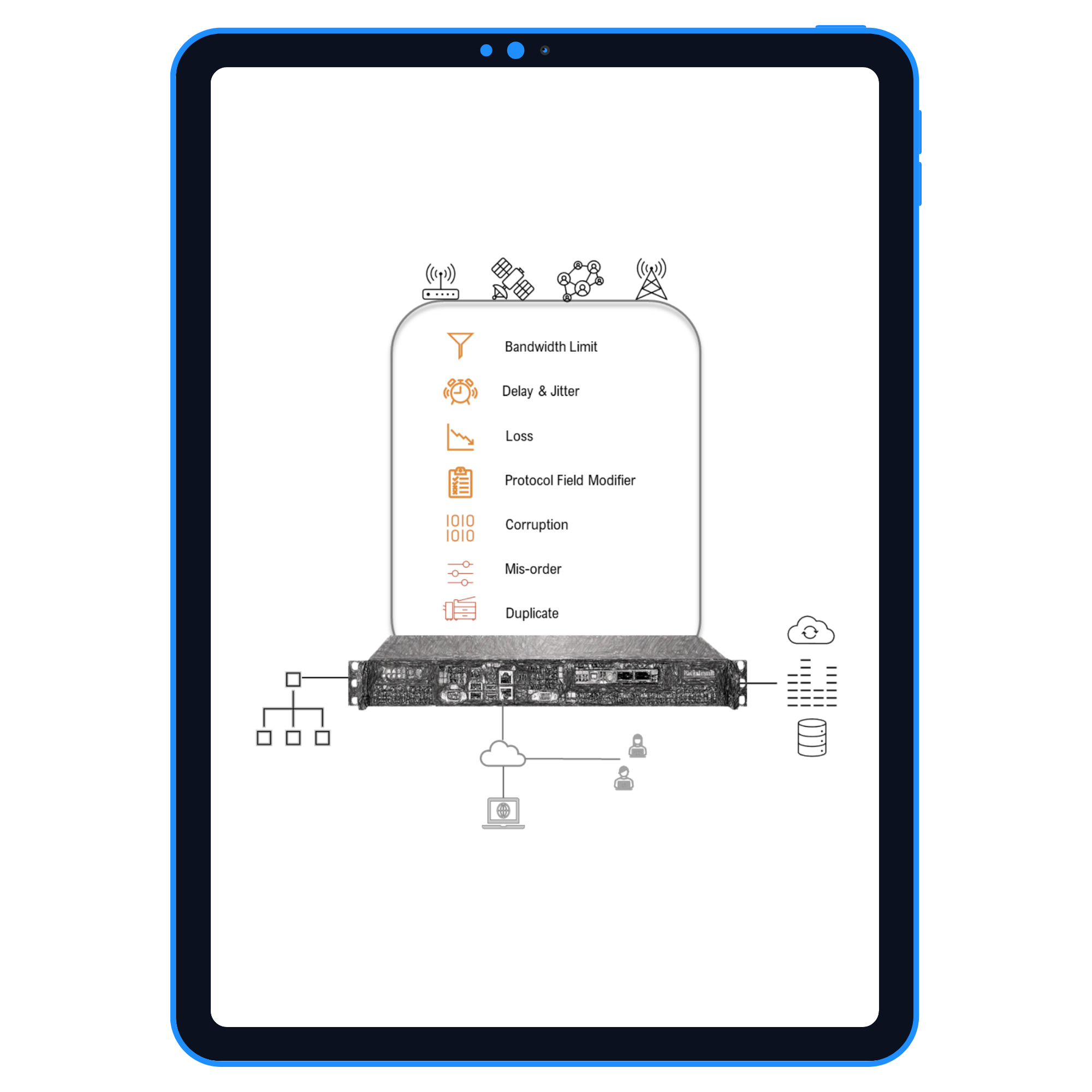

➔ Advanced impairment engine introduces controlled conditions: bandwidth limits, packet loss, delay, jitter, mis‑ordering, duplication, corruption, protocol field modifiers, and link flaps.
➔ Replicate challenging WAN environments to validate application resilience under real‑world stressors.
➔ WAN bypass with cut‑through forwarding minimizes delay for ultra‑low latency requirements.
➔ Capture traffic in PCAP format with user‑defined capture paths, enabling deep protocol analysis.
Software Interface
Intuitive Web-Based Interface
Feature-rich, easy-to-use software designed for network engineers—accessible from anywhere

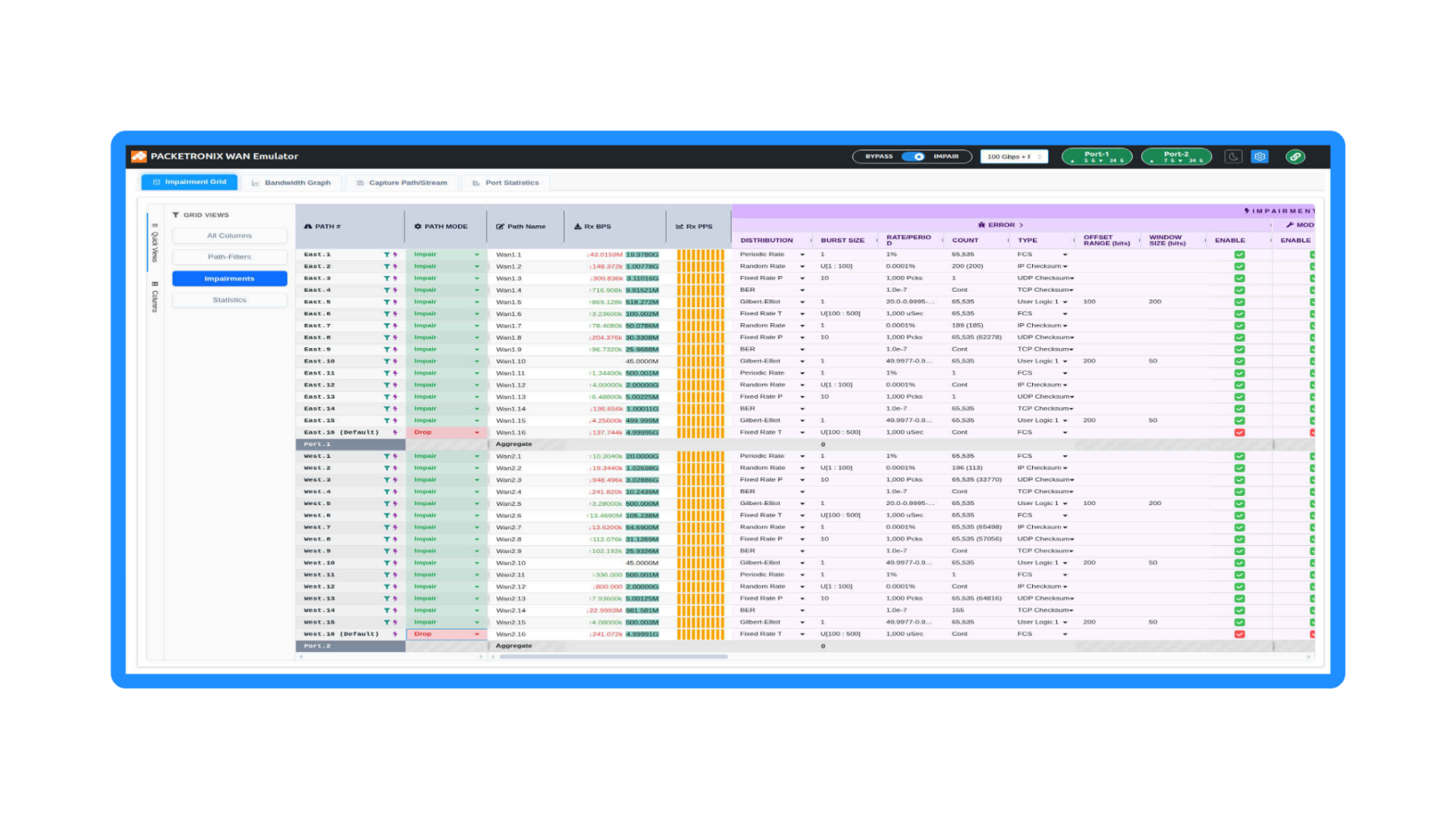

A computer screen displaying a network monitoring dashboard with columns for paths, modes, names, and various performance metrics.
Screenshot of a network simulation software interface called PacketTronix WAN Emulator, showing impairment grid and various network path configurations with columns for path mode, impairment type, burst size, rate, count, offset, mask, type, bound range, step size, repetition, enable, and distribution.

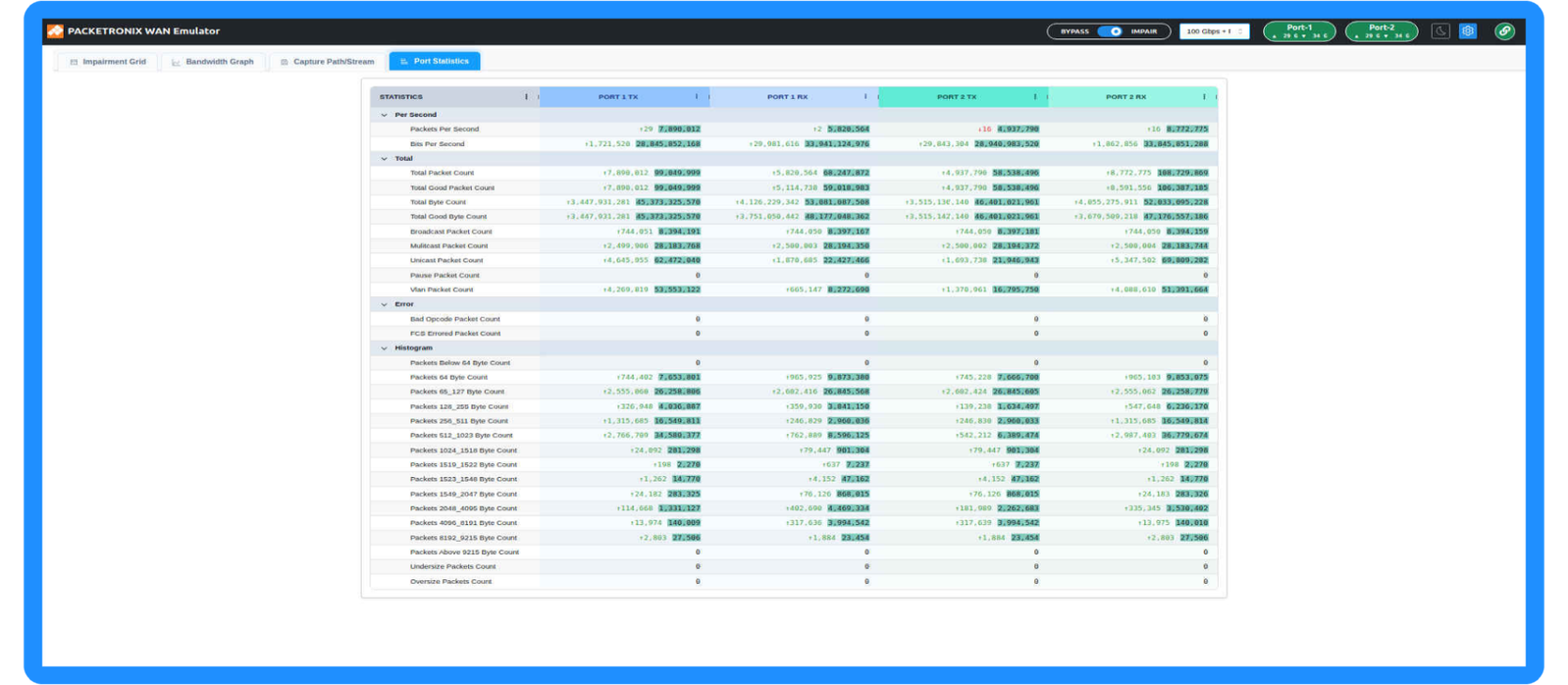

A computer screen displaying the Packettronix WAN Emulator software with various graphs and statistics related to network traffic and packet counts.

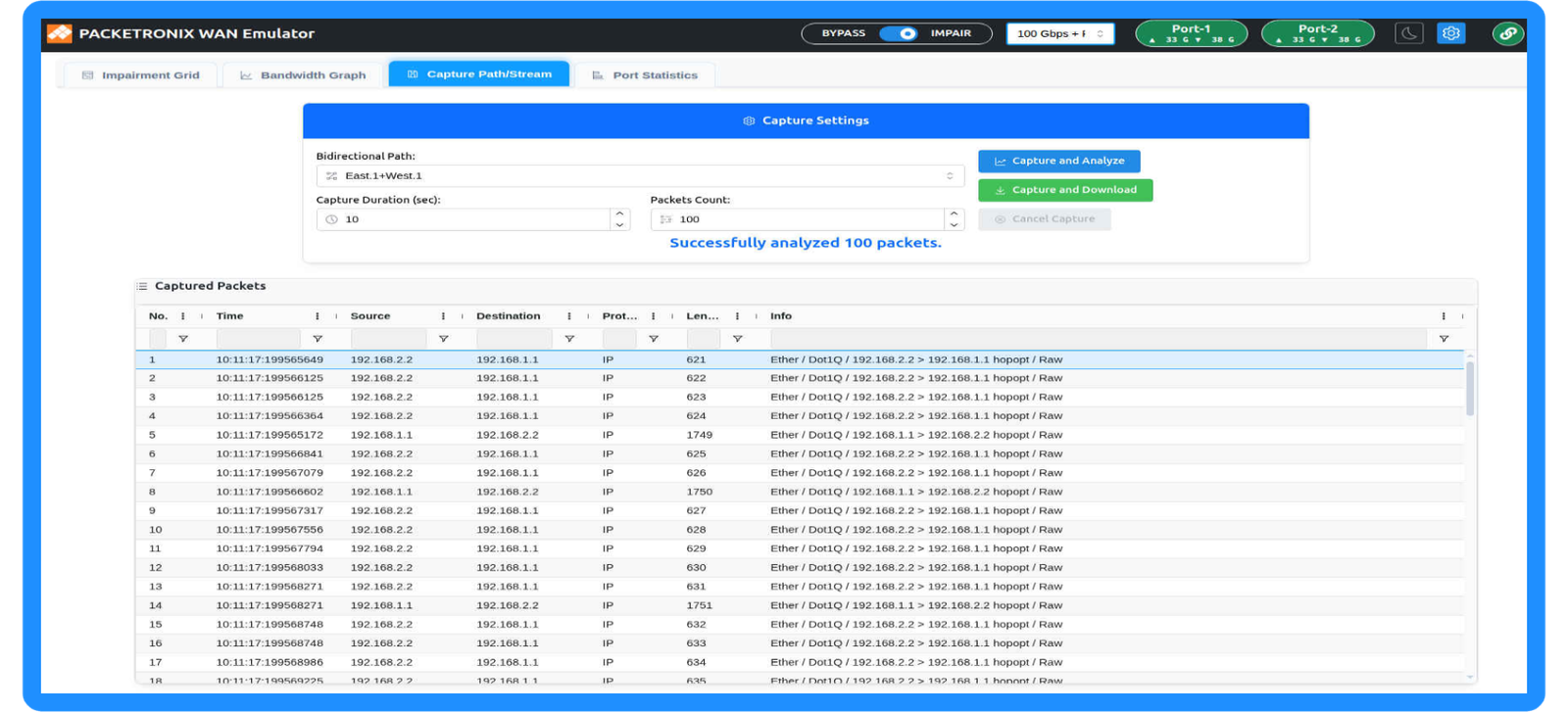

Screenshot of the Packet Tracer WAN Emulator interface showing capture settings and a list of captured network packets with their source and destination IP addresses.

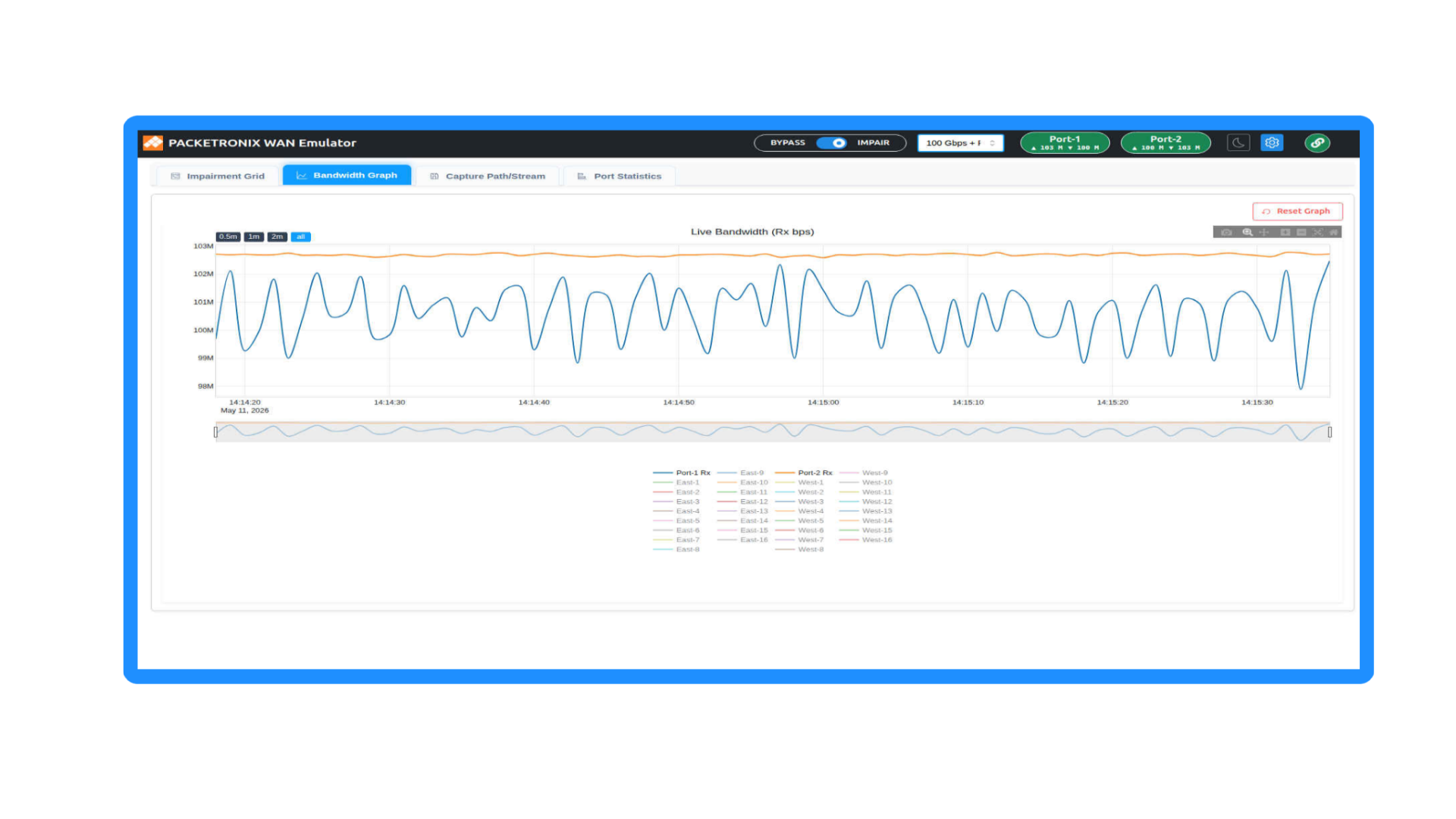

Computer screen displaying a network bandwidth graph and emulator software interface.

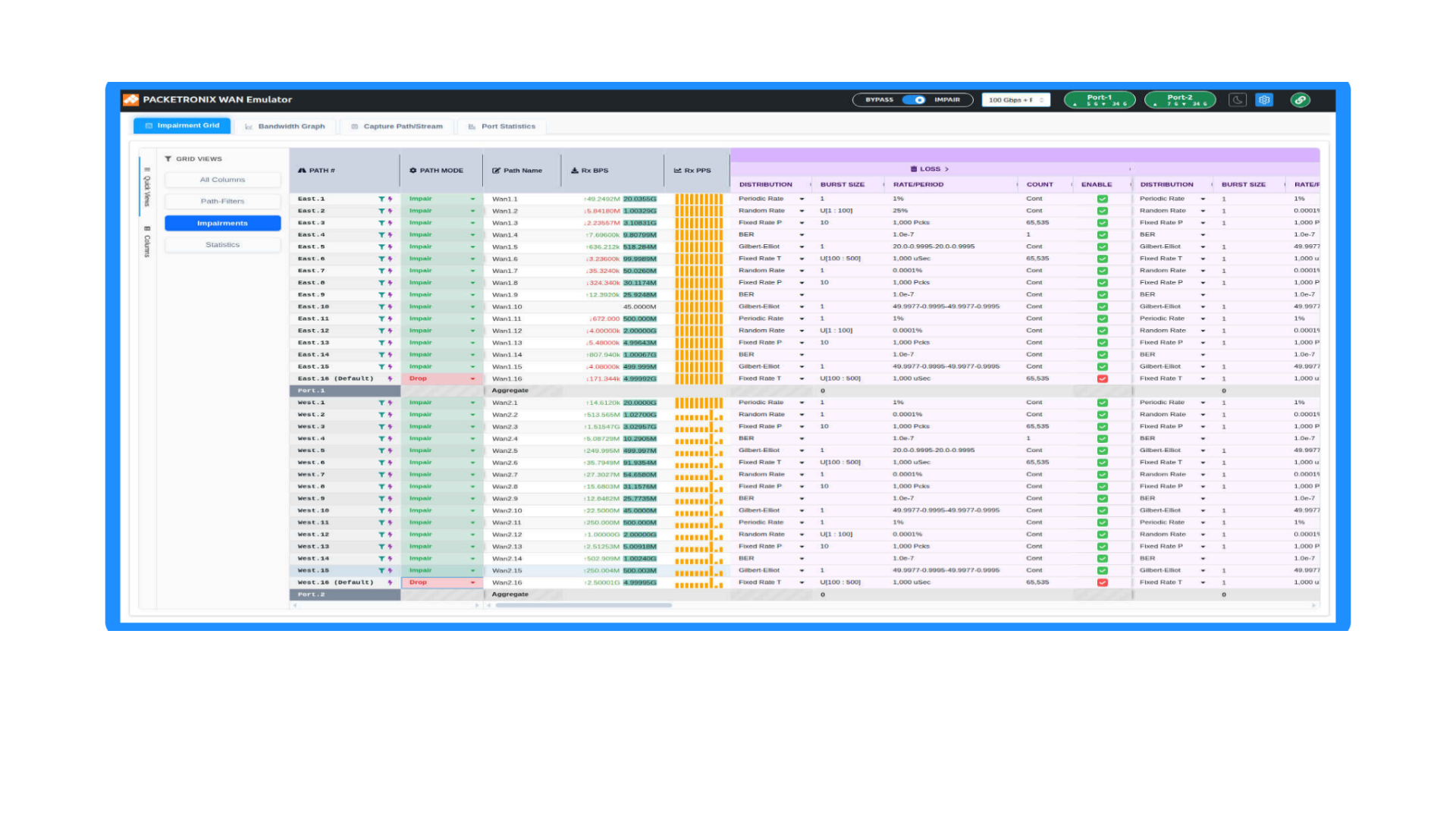

Screenshot of a network emulator interface displaying impairment grid data with multiple columns and rows, showing paths, impairment details, and statistics.

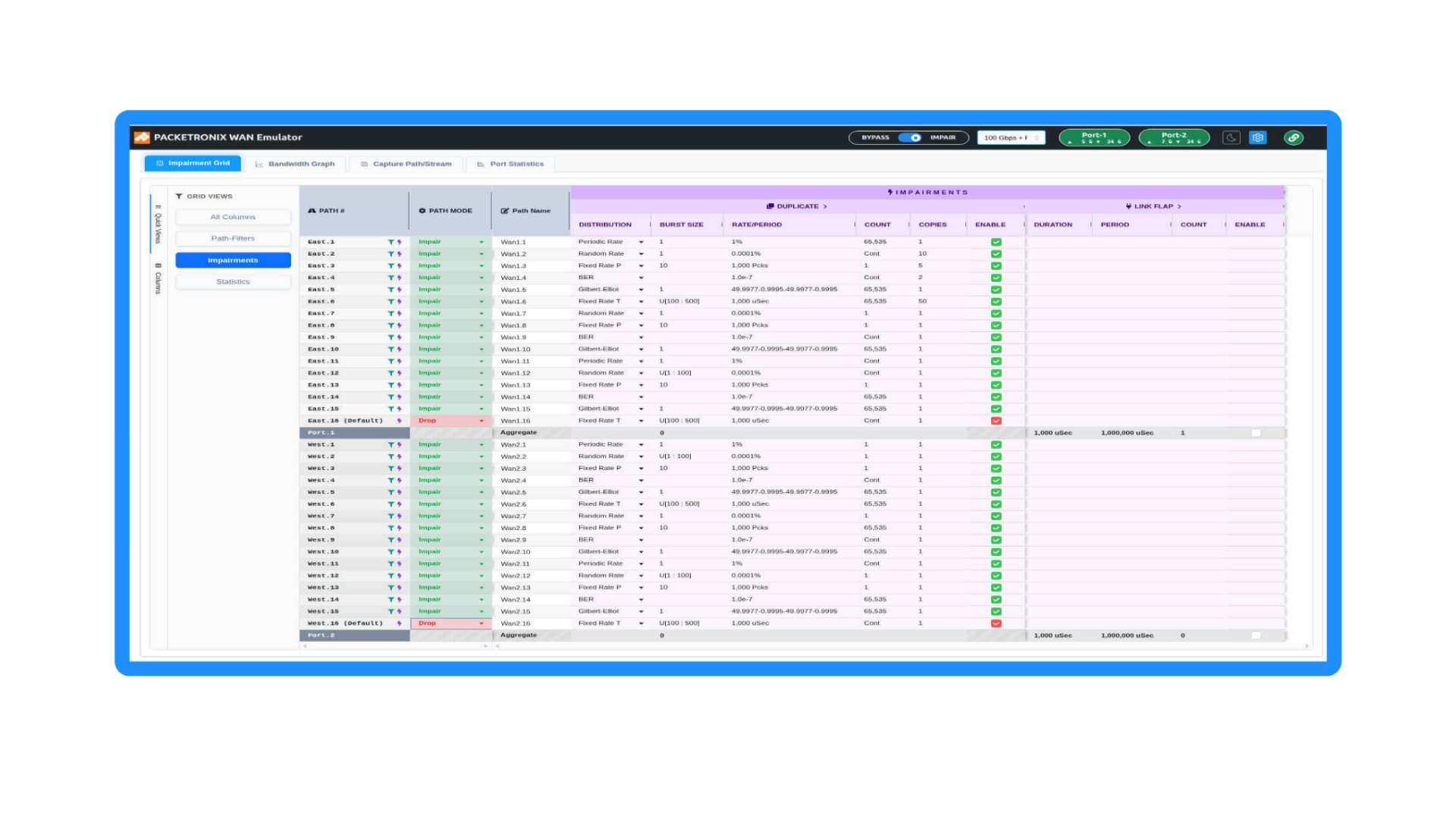

Screenshot of a network configuration and performance dashboard showing various parameters and status indicators for different network paths and ports.

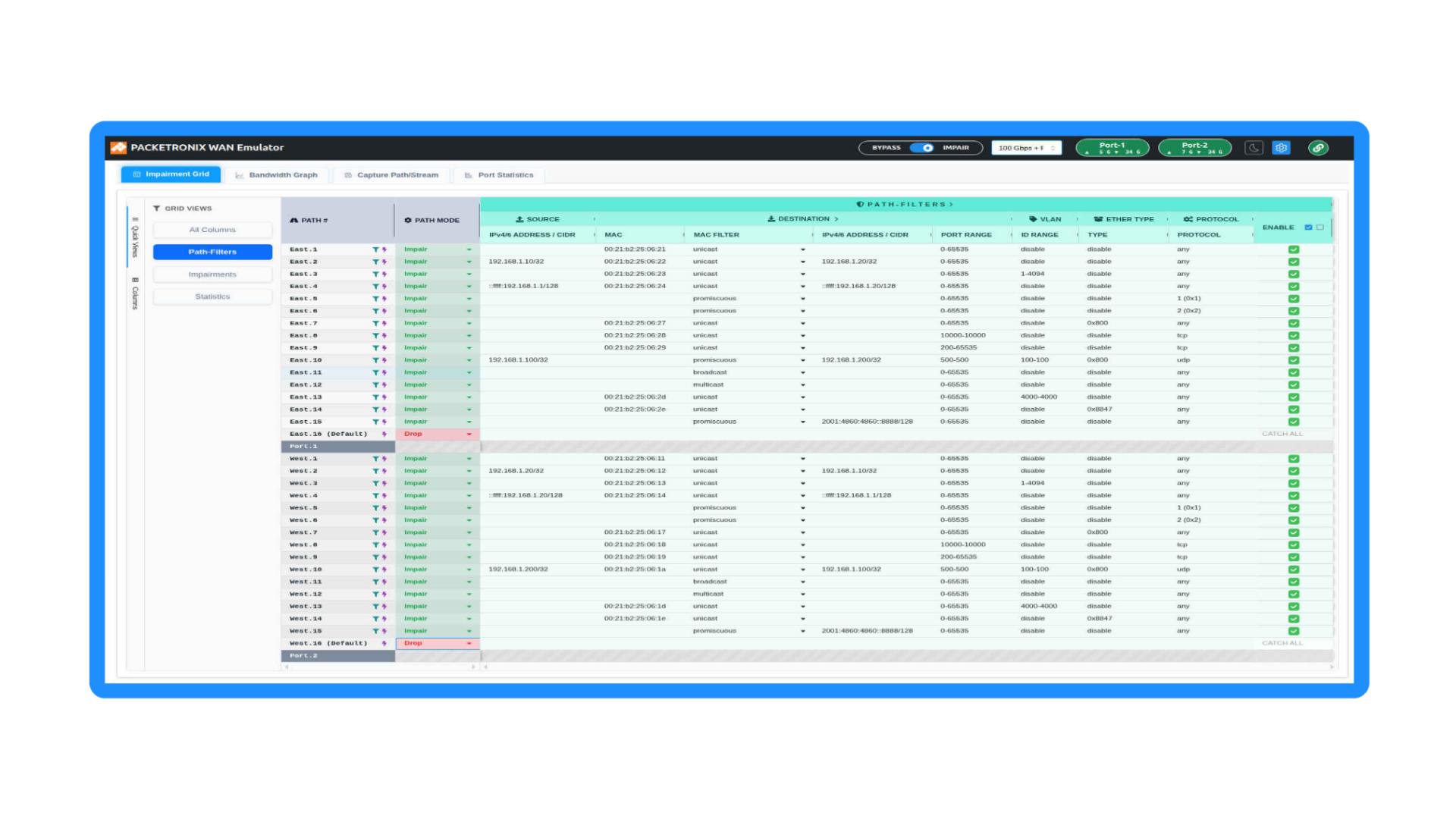

Screenshot of a network administration software interface showing a list of network paths, their modes, sources, destinations, and status indicators in a table.
Screenshot of network emulation software displaying a grid with rows, statistics, and packet data.
Screenshot of a network monitoring dashboard with columns showing various network ports and their statuses, bandwidth usage, and configurations.

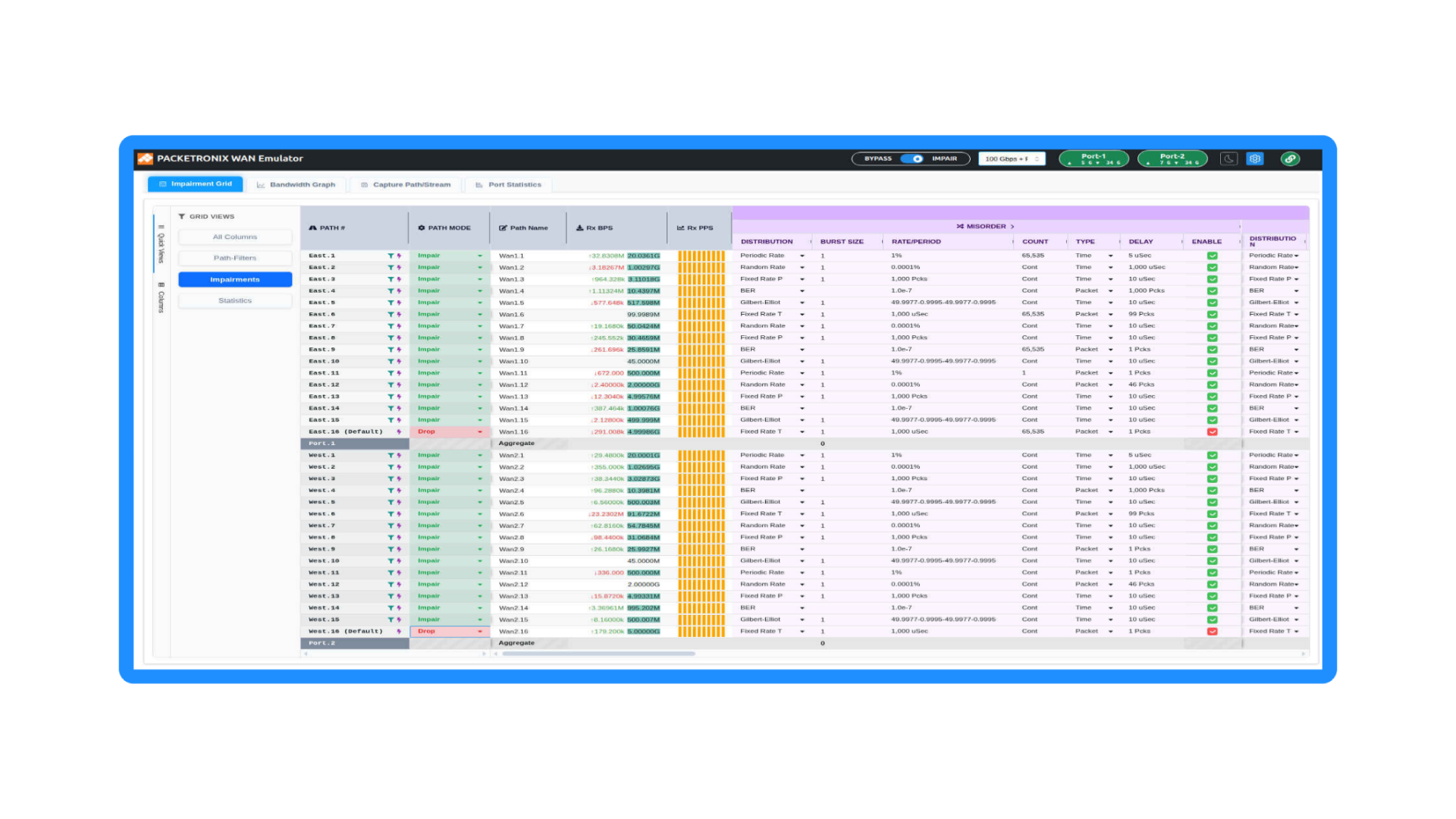

Screenshot of a network management software interface showing impairment data, port information, and traffic statistics.

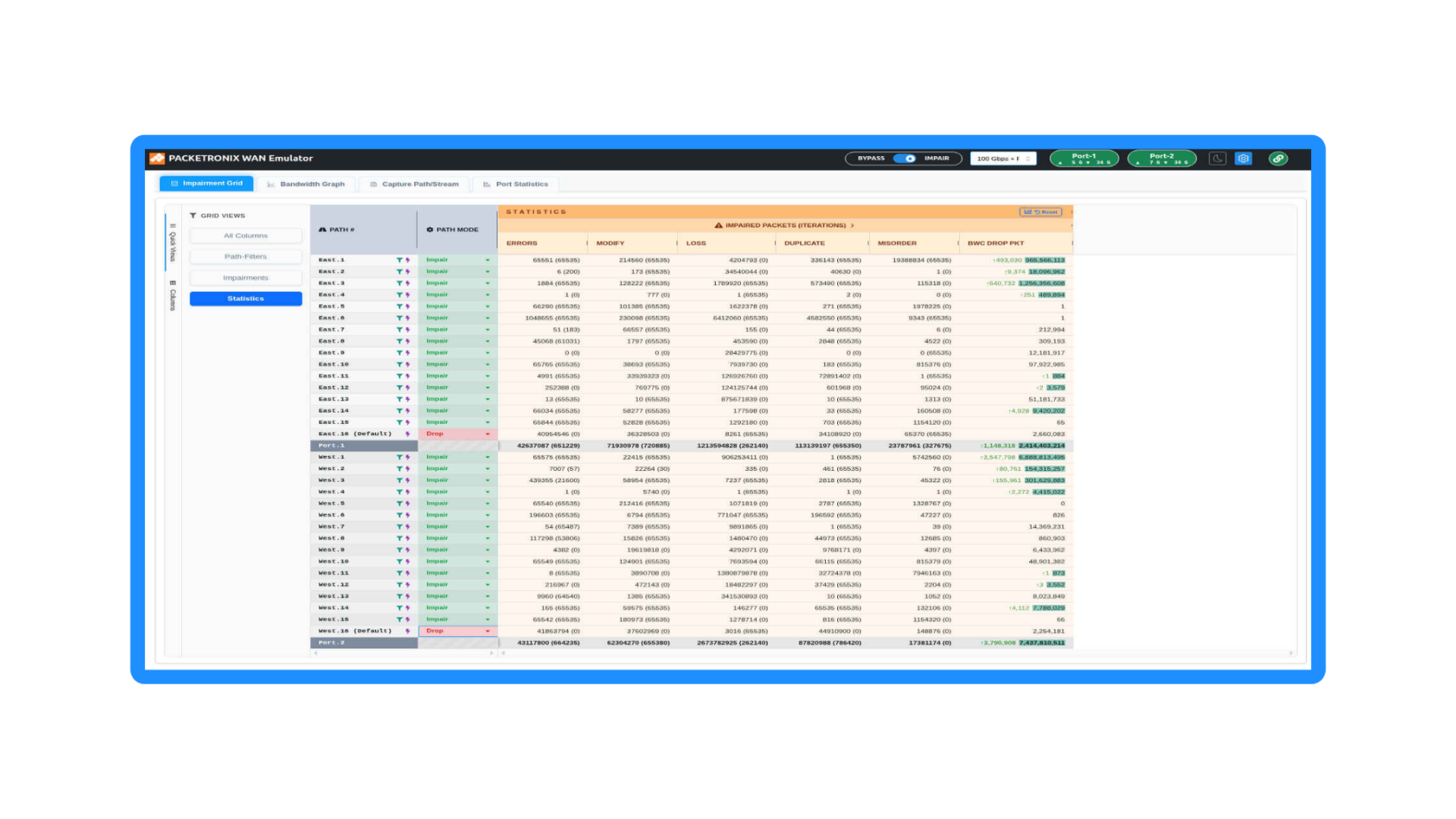

Screenshot of a network emulator software interface displaying impairment grid and statistics with various data fields and color-coded error indicators.
Use Cases
Real-world applications for network impairment testing
Application & Service Validation
Video conferencing and VoIP testing: Emulate intercontinental links to assess call quality and video performance under high latency or packet loss
SaaS/cloud application validation: Test responsiveness of applications when users connect from remote offices with varying bandwidth and delay
Streaming/media services: Evaluate how jitter and throughput fluctuations affect playback quality
Optimize application behavior in environments with delay, jitter, or reordering
Emerging Technologies
5G/6G and non-terrestrial networks: Emulate wireless links between smartphones and satellite-based 5G networks to test mobility and call quality
IoT deployments: Validate sensor data transmission reliability under constrained bandwidth or intermittent connectivity
Streaming/media services: Evaluate how jitter and throughput fluctuations affect playback quality
QoS and SLA verification: Ensure compliance with service-level agreements (e.g., sub-10ms latency for 5G URLLC applications)
Lab & Pre-Deployment Testing
Reproduce production conditions in the lab: Bring real-world impairments into controlled environments for repeatable, precise testing
Protocol and traffic profiling: Impair specific application traffic (e.g., video vs. file transfer) to study differentiated impacts
Impairment replay: Record real impairment patterns and reproduce them with impairments to evaluate robustness
Benchmark device performance under constrained bandwidth or lossy conditions
Policy and routing validation: Test how ACLs, firewalls, or routing policies behave under impaired conditions
Mission-Critical & Enterprise Resilience
Infrastructure resilience: Stress-test enterprise networks with controlled impairments like 5% packet loss or bursty traffic
Validate network and application resilience against real-world impairments
Remote office connectivity: Simulate WAN links to test collaboration tools across continent
Defense and mission-critical networks: Validate soldier and equipment connectivity under battlefield-like impairments
Disaster recovery planning: Test failover systems under degraded network conditions

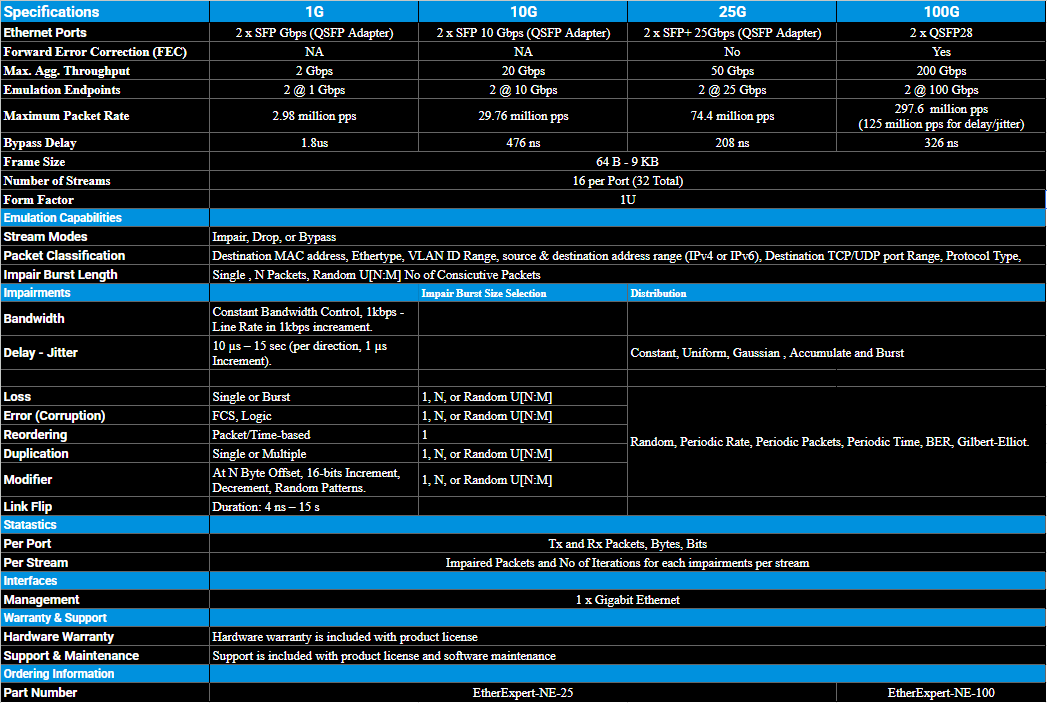

Specification
Frequently Asked Questions
-
The platform features easy to use web UI with multi-line rate support handling 1 Gbps, 10 Gbps, 25 Gbps, and 100 Gbps at full line rate. This allows engineering teams to scale their testing from standard enterprise workloads up to high-throughput cloud and data center environments. Currently only limitation it has is at 100G line rate, it supports ~50Gbps for delay-jitter impairment, and rest of the other impairments are at the full fine rate.
-
The EtherExpert-NE offers fine-grained delay control with up to 15 seconds of total delay, adjustable in precise 1-microsecond increments. Because it utilizes a dedicated FPGA-based architecture, it guarantees micro-level precision for consistent, repeatable impairment control.
-
Yes. The system features advanced stream identification and filtering. You can configure up to 16 independent paths per port. Each path/stream can be set to one of three modes:
Impair: Applies your custom network degradation profile.
Bypass: Minimizes delay using cut-through forwarding for ultra-low latency requirements.
Drop: Completely blocks the matched traffic.
-
The advanced hardware-based impairment engine can inject a comprehensive suite of real-world WAN stressors, including:
Bandwidth limits and packet loss
Delay and jitter (with various distributions)
Packet mis-ordering, duplication, and corruption
Protocol field modifiers and link flaps
-
Yes. The EtherExpert-NE features full simultaneous IPv4 and IPv6 dual-stack support for comprehensive protocol validation across modern network architectures.
-
The emulator includes a multi-user, web-based UI accessible from anywhere, removing the need for localized client software. For DevOps and QA automation, it exposes robust REST APIs that make it easy to integrate the platform directly into your CI/CD pipelines and regression testing suites.
-
Yes. The platform allows you to capture traffic directly into PCAP format using user-defined capture paths, enabling deep offline protocol analysis using tools like Wireshark. The platform also allows you to analyze captured traffic using built-in packet analyzer along with hex dump.
-
The EtherExpert-NE is designed for several critical testing environments:
Application & Service Validation: Testing VoIP/Video quality, SaaS responsiveness, and media streaming over simulated intercontinental or lossy links.
Emerging Tech: Validating 5G/6G non-terrestrial (satellite) networks, IoT deployments under constrained bandwidth, and ensuring sub-10ms URLLC SLA compliance.
Resilience & DR Planning: Stress-testing defense infrastructure, remote office collaboration tools, and failover routing policies against simulated battlefield or disaster recovery conditions.
-
Yes. By combining our Protocol Modifier with the Packet Duplication engine, you can replicate an incoming traffic stream multiple times. This allows you to artificially scale up your traffic volume and simulate high-throughput network congestion or DDoS-like scenarios using only a single, low-volume input stream.
